Various Models Available Vessel FRP Or Reinforced PP Composite Tank
Produktdetails:
| Place of Origin: | China |
| Markenname: | China brand |
| Zertifizierung: | CE/UL/NSF |
| Model Number: | Various models available |
| Dokument: | FRP-tanks-print.pdf |
Zahlung und Versand AGB:
| Minimum Order Quantity: | 1 set |
|---|---|
| Preis: | verhandelbar |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized |
| Delivery Time: | 5-8 working days after payment received |
| Payment Terms: | T/T |
| Supply Ability: | 10,000 set per month |
|
Detailinformationen |
|||
| Size(inch) of the Tank: | Various size available | Diam&Height(mm) of the tank: | Multiple options |
|---|---|---|---|
| The Opening(inch): | Top Opening 2.5"Thread | The Design Flow Rate(T/H): | 0.5～1.0 |
| The Original of the tank: | China | Advantages: | Easy Maintenance And Upkeep,Corrosion resistant and no leak |
| Core Material: | FRP or reinforced PP | The Usage: | Water treatment |
Produkt-Beschreibung

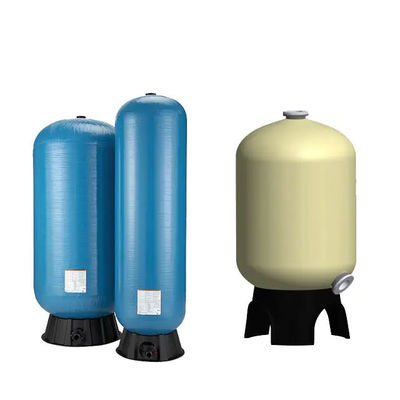

Various Models Available Vessel FRP Or Reinforced PP Composite Tank

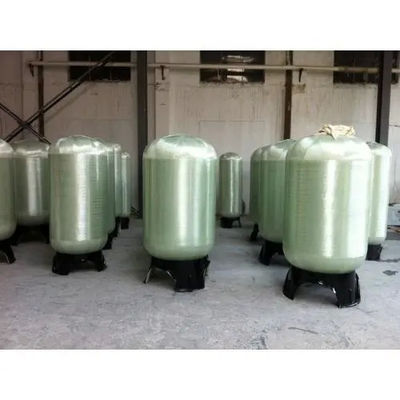

Designed for Fluid Containment in Purification Systems: FRP (Fiber-Reinforced Plastic) composite tanks deliver essential corrosion-resistant pressurized storage within water treatment architectures. Their monolithic integrity stems from an advanced manufacturing protocol: application of continuous reinforcing fiber filaments saturated with optimized thermosetting resin matrices via computer-guided multiaxial winding onto a pre-formed liner constructed of either HDPE/LDPE (polyethylene) or FRP laminate. This seamless integration yields a structurally consolidated vessel engineered to withstand demanding operational environments across the purification spectrum.

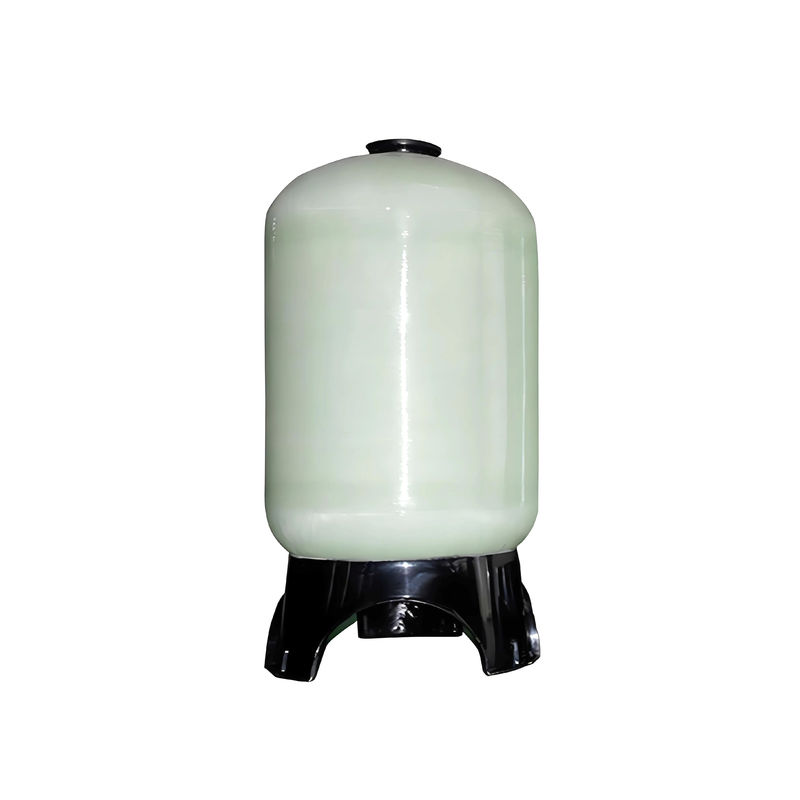

Fundamental physical elements constitute the unit:
- Primary Chamber: The central cylindrical containment volume.
- Access Portals: Precision-formed upper and lower apertures facilitating fluid conveyance.
- Egress Node: A dedicated discharge outlet.
- Stabilizing Foundation: Ensures structural integrity during service.
Fluid interface connectivity at Portals (items 2 & 3) is predominantly achieved utilizing mechanical joints rated for high-load transmission: specifically, precision-engineered threaded connectors or industry-standard flanges. Foundation elements (item 4) employ glass-reinforced polymeric composites or rigidified polypropylene compounds.
These tanks manage diverse fluidic outputs integral to processing cycles:
- Municipal Potable Reserves ("Clean")
- Deionized/Ultrapure Grades
- Cation-Exchange Softened Streams
- Pre-conditioned Waste Effluents ("Sewage")
Suitability spans domains from high-throughput industrial contexts—chemical synthesis, agribusiness irrigation, pharma process water, F&B primary processing, fermentation facilities—to decentralized commercial applications and residential potable/utility water solutions. Selection necessitates matching specific system volumetric throughput, chemical compatibility constraints, and physical footprint allowances against engineered tank configurations (material grades, geometries, pressure ratings, connector types).
|
尺寸(英寸) |
直径&高度(mm) |
开口(英寸) |
设计流量(T/ H ) |
|
0818 |
φ200×450 |
顶部开口2.5英寸螺纹 |
0.1～0.2 |
|
0835 |
φ200×890 |
顶部开口2.5英寸螺纹 |
0.2～0.4 |
|
0844 |
φ200×1100 |
顶部开口2.5英寸螺纹 |
0.2～0.5 |
|
1035 |
φ250×890 |
顶部开口2.5英寸螺纹 |
0.5～1.0 |
|
1054 |
φ250×1400 |
顶部开口2.5英寸螺纹 |
0.5～1.5 |
|
1254 |
φ300×1400 |
顶部开口2.5英寸螺纹 |
1.6～2.2 |
|
1265 |
φ300 ×1650 |
顶部开口2.5英寸螺纹 |
2.0～2.5 |
|
1354 |
φ325 ×1400 |
顶部开口2.5英寸螺纹 |
2.0～2.5 |
|
1365 |
φ325×1650 |
顶部开口2.5英寸螺纹 |
2.0～2.5 |
|
1454 |
φ350×1400 |
顶部开口2.5英寸螺纹 |
2.5～3.0 |
|
1465 |
φ350×1650 |
顶部开口2.5英寸螺纹 |
2.5～3.0 |
|
1654 |
φ400×1400 |
顶部开口2.5英寸螺纹 |
3.2～4.5 |
|
1665 |
φ400×1650 |
顶部开口2.5英寸螺纹 |
3.2～4.5 |
|
2069 |
φ500×1750 |
顶部开口4英寸螺纹 |
4.5～6.0 |
|
2069 |
φ500×1750 |
顶部和底部开口 4” 螺纹 |
4.5～6.0 |
|
2474 |
φ600 ×1900 |
顶部开口4英寸螺纹 |
6.2～8.2 |
|
2474 |
φ600×1900 |
顶部和底部开口4英寸螺纹 |
6.2～8.2 |
|
3074 |
φ750×1900 |
顶部开口4英寸螺纹 |
7.2～12.2 |
|
3074 |
φ750×1900 |
顶部和底部开口4英寸螺纹 |
7.2～12.2 |
|
3674 |
φ900×1900 |
顶部开口4英寸螺纹 |
13.2～16.2 |
|
3674 |
φ900×1900 |
顶部和底部开口4英寸螺纹 |
13.2～16.2 |
|
3687 |
φ900×2200 |
顶部开口4英寸螺纹 |
13.2～16.2 |
|
3687 |
φ900×2200 |
顶部和底部开口4英寸螺纹 |
13.2～16.2 |
|
3696 |
φ900×2400 |
顶部和底部开口6英寸法兰 |
13.2～16.2 |
|
4074 |
φ1000×1900 |
顶部和底部开口4英寸螺纹 |
17.0～23.0 |
|
4074 |
φ1000×1900 |
顶部和底部开口4英寸螺纹 |
17.0～23.0 |
|
4087 |
φ1000×2200 |
顶部和底部开口4英寸螺纹 |
17.0～23.0 |
|
4096 |
φ1000×2400 |
顶部和底部开口6英寸法兰 |
18.0～25.0 |
|
4887 |
φ1200×2200 |
顶部和底部开口6英寸法兰 |
28.0～38.0 |
|
4896 |
φ1200×2400 |
顶部和底部开口6英寸法兰 |
28.0～38.0 |
|
6096 |
φ1500×2400 |
顶部和底部开口6英寸法兰 |
38.0～55.0 |
|
6396 |
φ1600×2400 |
顶部和底部开口6英寸法兰 |
38.0～55.0 |
|
7296 |
φ1800×2400 |
顶部和底部开口6英寸法兰 |
55.0～80.0 |
|
8096 |
φ2000×2400 |
顶部和底部开口6英寸法兰 |
80.0～100.0 |
|
80102 |
φ2000×2600 |
顶部和底部开口6英寸法兰 |
80.0～100.0 |
