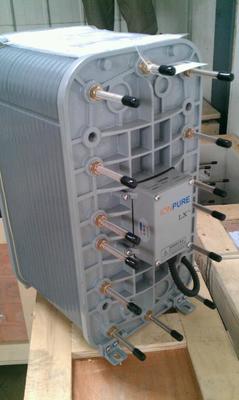

Ionpure LX-Z IP-LXM24Z-5 CEDI Module: Industrial High-Purity Water Production Without Chemicals
Produktdetails:
| Herkunftsort: | CHINA |
| Markenname: | IONPURE |
| Zertifizierung: | CE |
| Modellnummer: | IP-LXM24Z-5 |
| Dokument: | fgwater-ionpure-lxz-ds.pdf |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 PC |
|---|---|
| Preis: | verhandelbar |
| Verpackung Informationen: | Standard -Exportpackung |
| Lieferzeit: | 5- 8 Arbeitstage |
| Versorgungsmaterial-Fähigkeit: | 60000 Einheiten pro Monat |
|
Detailinformationen |
|||
| 24Z-5 Mindestdurchflussrate M3/H (GPM): | 1,36 (6,0) | 24Z-5-Konstruktionsfluss M3/Std. (GPM): | 2,8-4.2 (12,5-18,8) |
|---|---|---|---|
| 24Z-5 Versandgewicht kg (lbs) **: | 115 (254) | 24Z-5-Operationsgewicht kg (lbs): | 92 (103) |
| 24Z-5 Erholung: | 90–95% | Stapelvorteile: | Breiter Flussbereich, niedrige Betriebskosten ， ohne Chemikalien |
| Anwendungen im Stapel: | Industrielle hohe Wasserproduktion | Stack Mindestflussrate M3/H (GPM): | 1,36 (6,0) |
| Stapeldesignflussrate M3/H (GPM): | 2,8-4.2 (12,5-18,8) | Stack Versandgewicht kg (lbs) **: | 115 (254) |
| Stack Operating Gewicht KG (LBS): | 92 (103) | Stapelwiederherstellung: | 90–95% |
| DC -Spannung: | 0–400 | DC -Verbesserung: | 1.0–6.0 |
| Vorteil: | Gute Wasserqualität | ||
| Hervorheben: | industrial CEDI water module,chemical-free EDI module,high-purity water production module |
||
Produkt-Beschreibung
Good Water Quality Ionpure CEDI LX-Z IP-LXM24Z-5 For Biopharmaceutical Industry
The Ionpure IP-LXM24Z-5 CEDI module delivers reliable, chemical-free ultrapure water production for industrial applications. With consistent output quality (up to 18 MΩ·cm) and minimal wastewater generation, this system is ideal for pharmaceutical manufacturing, microelectronics production, and laboratory water systems. The compact design features simplified maintenance and easy integration into existing water treatment workflows, significantly reducing operational costs compared to traditional ion exchange systems.
The Ionpure IP-LXM24Z-5 CEDI module delivers reliable, chemical-free ultrapure water production for industrial applications. With consistent output quality (up to 18 MΩ·cm) and minimal wastewater generation, this system is ideal for pharmaceutical manufacturing, microelectronics production, and laboratory water systems. The compact design features simplified maintenance and easy integration into existing water treatment workflows, significantly reducing operational costs compared to traditional ion exchange systems.
Product Overview
The Ionpure LX-Z is an industrial CEDI module designed for high-purity water production in the biopharmaceutical industry, offering superior water quality with low operating costs.
Key Features
- Excellent electrical insulation performance
- Double O-ring seal ensures leak-free operation
- Significantly lower operating costs than traditional ion exchange
- No acid, alkali, or neutralization system required
- Continuous operation at 7bar (100psi), 45°C (113°F)
- Patented "full-filled" concentrate chamber design
- Produces water quality equal to or better than mixed bed systems
- Continuous water production with stable quality
Technical Specifications
| Attribute | Value |
|---|---|
| Minimum Flow Rate (m³/hr/gpm) | 1.36 (6.0) |
| Design Flow Rate (m³/hr/gpm) | 2.8-4.2 (12.5-18.8) |
| Shipping Weight (kg/lbs) | 115 (254) |
| Operating Weight (kg/lbs) | 92 (103) |
| Recovery Rate | 90-95% |
| DC Voltage | 0-400 |
| DC Amperage | 1.0-6.0 |
Module Components
The EDI membrane block removes ions through built-in ion exchange resin, consisting of:
- Pure water chamber - Mixed resin layer between anion and cation exchange membranes
- Concentrated water chamber - Working interlayer between pure water chambers
- Electrode plates - Generate electric field during operation
Applications
- Solar photovoltaic industry
- Electronics manufacturing
- Biopharmaceutical production
- Chemical processing
- Conventional industrial applications
- Power industry
Quality Assurance
CE mark certified, manufactured under ISO 9001 and ISO 14000 standards with strict factory testing.
Operating Environment
Install indoors away from direct sunlight with ambient temperature not exceeding 45°C (113°F) for optimal performance and longevity.
Performance Data
Recovery: 90-95%
DC Voltage: 0-400
DC Amperage: 1.0-6.0
Product Resistivity: Minimum Flow > 17 MW-cm*†, Maximum Flow > 7 MW-cm*†
Silica (SiO2) Removal: 90-99%
Feed Water Specifications
| Parameter | Specification |
|---|---|
| Conductivity | < 40 μS/cm |
| Temperature | 5-45°C (41-113°F) |
| Inlet Pressure | 1.4-6.9 bar (20-100 psig) |
| Total Chlorine | < 0.05 ppm |
| pH | 4-11 |
About FG Water Technologies
A high-tech entity specializing in water treatment equipment design, manufacturing, and international shipment, serving various industrial sectors worldwide.
For more information, visit: www.fgwater.com
