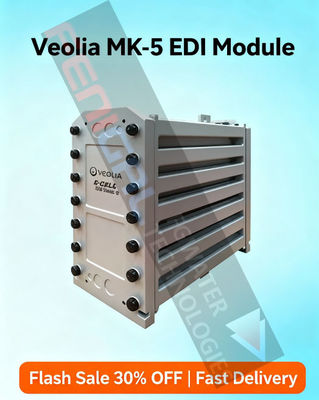

Veolia MK-5 EDI Module (Previously E-CELL-3X) High-Purity Water Solution for Medical Industry
Produktdetails:
| Herkunftsort: | CHINA |
| Markenname: | VEOLIA |
| Zertifizierung: | CE |
| Modellnummer: | MK-5 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 PC |
|---|---|
| Preis: | verhandelbar |
| Verpackung Informationen: | Standard -Exportpackung |
| Zahlungsbedingungen: | T/t |
| Versorgungsmaterial-Fähigkeit: | 60000 Einheiten pro Monat |
|
Detailinformationen |
|||
| MK-5-Mindestdruckdifferenz zwischen verdünntem Auslass und Konzentrateinlass (Balken):: | 0,34 | MK-5 Verdünnter Einlass/Auslass-Standarddruckabfall (Balken):: | 1.4-2.8 |
|---|---|---|---|
| MK-5-Einlassdruck (Bar):: | Gegenströmung: 4.1-6,9 Ko-Strom: 3.1-6.9 | MK-5-Ampere (ADC):: | 0-5.2 |
| MK-5-Spannung (VDC):: | 0-400 | MK-5-Erholung:: | Bis zu 97% |
| Entworfene Wasserproduktion (M3 /h) MK-5:: | 4.0-6.4 | MK-5 Nennfluss:: | 5,0 m3/h (22 gpm) |
| MK-5-Anwendung:: | Kesselspeiswasser in Kraftwerken | Highlight:: | Veolia MK-5 EDI-Modul für Halbleiter, Suez-EDI-Stapel für den industriellen Gebrauch, E-Cell-3x-Ersa |
| Hervorheben: | Veolia MK-5 EDI module medical industry,EDI module high-purity water solution,Veolia E-CELL-3X replacement EDI module |
||
Produkt-Beschreibung
The Veolia MK-5 EDI Module (Previously E-CELL-3X) is a cutting-edge electronic deionization (EDI) system designed to deliver ultra-pure water, critical for precision-dependent sectors like healthcare. As a successor to the trusted E-CELL-3X, this module integrates advanced ion-exchange technology with electric field-driven purification, eliminating the need for chemical regeneration and ensuring consistent, contaminant-free water output.
Core Technology & Process
Leveraging aAgainst the current (counterflow) operation design, the Veolia MK-5 EDI Module efficiently removes ions, organic matter, and microorganisms from feedwater. It combines semipermeable membranes and ion-exchange resins, where an electric field accelerates ion migration—resulting in water purity exceeding 99.9% desalination rate. This chemical-free process reduces environmental impact while maintaining stable performance even in highIncoming water hardness (feedwater hardness) conditions, minimizing cleaning frequency and downtime.
Medical Industry Applications
In healthcare, the module is indispensable for:
• Medical device sterilization: Providing pyrogen-free water for autoclaves and surgical instrument cleaning.
• Pharmaceutical production: Meeting USP/EP standards for drug formulation and API manufacturing.
• Laboratory diagnostics: Ensuring accurate results in clinical tests and molecular biology research.
Specifications Table
|
Parameter |
Value |
|
Rated Flow Rate |
5.0 m³/h (22 gpm) |
|
Flow Range |
2.3 – 6.4 m³/h (10–28 gpm) |
|
Max Operating Pressure |
0.6 MPa |
|
Desalination Rate |
≥99.9% |
|
Certifications |
CE, RoHS compliant |
Competitive Advantages
• Energy Efficiency: Low power consumption and no brine injection reduce operational costs by 30% vs. traditional DI systems.
• Reliability: Counterflow design enhances durability, ideal for 24/7 medical facility operations.
• Regulatory Compliance: Aligns with global healthcare standards, supporting seamless audits.
For medical facilities prioritizing purity, efficiency, and compliance, the Veolia MK-5 EDI Module (Previously E-CELL-3X) sets the benchmark for ultra-pure water solutions.
