DuPont SFP-2860 UF Membrane Advanced Filtration for Medical Ultrapure Water Generation
Produktdetails:
| Herkunftsort: | CHINA |
| Markenname: | DuPont |
| Zertifizierung: | CE |
| Modellnummer: | SFP-2860 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 PC |
|---|---|
| Preis: | verhandelbar |

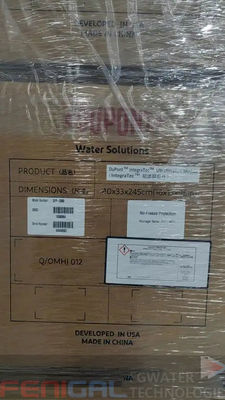

| Verpackung Informationen: | Standard -Exportpackung |
| Lieferzeit: | 5- 8 Arbeitstage |
| Zahlungsbedingungen: | T/t |
| Versorgungsmaterial-Fähigkeit: | 60000 Einheiten pro Monat |
|
Detailinformationen |
|||
| SFP-2860MEMBRANE-Bereich: | 51 m² (549 ft²) | SFP-2860 Flussbereich (25 ° C): | 40–90 LMH |
|---|---|---|---|
| SFP-2860 Max TMP: | 2.1 bar | SFP-2860 Durchflussrate: | 2,0–6,9 m³/h |
| SFP-2860 Gewicht (leer): | 48 kg | Anwendungen: | Vorbehandlung für RO -Systeme |
| Highlight: | DuPont SFP-2860 UF-Membran Medizin, Ultrapure-Wassererzeugung UF-Membran, Dow UF-Membran mit Garanti | ||
Produkt-Beschreibung
The DuPont SFP-2860 UF Membrane is a high-performance ultrafiltration module engineered specifically for critical medical ultrapure water systems, leveraging robust PVDF (Polyvinylidene Fluoride) hollow fiber technology to meet stringent medical water purity standards. As a core pretreatment component for reverse osmosis (RO) systems, it ensures reliable removal of contaminants larger than 0.03 microns—including bacteria, viruses, colloids, and silt—while reducing the Silt Density Index (SDI) to protect downstream equipment and guarantee final effluent purity. Originating from China and certified by CE, this membrane is trusted for its stable operation and compatibility with medical-grade water demands.
Key Applications
The DuPont SFP-2860 UF Membrane is indispensable in medical and pharmaceutical scenarios, such as:
-
Hemodialysis water systems (delivering safe water for patient treatments)
-
Medical device rinsing (ensuring sterility of equipment)
-
Pharmaceutical manufacturing pretreatment (providing compliant feedwater)
-
Laboratory reagent preparation (upholding experimental accuracy)
-
RO system pretreatment in hospitals, clinics, and medical research institutions.
Specification Parameters
|
Parameter
|
Value
|
|
Membrane Material
|
PVDF Hollow Fiber
|
|
Effective Membrane Area
|
51 m² (549 ft²)
|
|
Pore Size
|
0.03 μm
|
|
Max Operating Pressure
|
0.4 MPa (2.1 Bar max TMP)
|
|
Max Flow Rate
|
≥50 m³/hr (220 gpm)
|
|
Operating Temperature
|
Typical 25°C
|
|
Empty Weight
|
48 kg (106 lbs)
|
|
Filled Weight
|
83 kg (183 lbs)
|
|
Module Dimensions
|
1860×225 mm
|
|
Flux Range (25°C)
|
40–90 LMH
|
Core Advantages
-
Medical-Grade Purity: 0.03 μm pore size achieves >99% bacteria/virus removal, meeting medical water safety standards.
-
Durability: PVDF material resists corrosive cleaning agents, ensuring long service life and lower maintenance costs.
-
Cost Efficiency: Large 51 m² membrane area reduces system footprint and energy use, boosting operational economy.
-
Flexibility: Suitable for containerized systems and space-constrained facilities (e.g., small clinics).
-
Reliable Pretreatment: Protects RO membranes by lowering SDI, extending downstream equipment lifespan.
FAQ
Q1: What is the minimum order quantity for the DuPont SFP-2860 UF Membrane?
A1: The minimum order quantity is 1 pc, supporting small-batch trials.
Q2: How long is the delivery time?
A2: Delivery takes 5–8 working days via standard export logistics.
Q3: Can it be used for non-medical applications?
A3: While optimized for medical ultrapure water, it also works as RO pretreatment in industrial settings.
After-Sales Support
The DuPont SFP-2860 UF Membrane comes with a manufacturer’s warranty (details available on request). For technical issues (e.g., installation guidance, cleaning protocols), our professional team provides timely support. Packaging uses standard export materials to prevent damage during transit. Payment is accepted via T/T for secure cross-border transactions.
