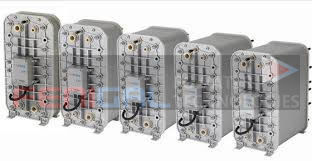

Ionpure CEDI LX-Z IP-LXM10Z-5 Advanced EDI Module for High-Purity Water Solutions
Produktdetails:
| Herkunftsort: | CHINA |
| Markenname: | IONPURE |
| Zertifizierung: | CE |
| Modellnummer: | LXM10Z-5 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 PC |
|---|---|
| Preis: | verhandelbar |
| Verpackung Informationen: | Standard -Exportpackung |
| Lieferzeit: | 5- 8 Arbeitstage |
| Zahlungsbedingungen: | T/t |
| Versorgungsmaterial-Fähigkeit: | 60000 Einheiten pro Monat |
|
Detailinformationen |
|||
| CEDI -Mindestdurchflussrate M3/H (GPM): | 0.57 (2.5) | CEDI -Konstruktionsflussrate M3/H (GPM): | 1.1-1.65 (5.0-7.5) |
|---|---|---|---|
| CEDI Gewicht in kg (lb): | 78 (171) | CEDI Betriebsgewicht kg (lbs): | 51 (113) |
| CEDI Rückforderung: | 90–95% | DC -Spannung: | 0-400V |
| DC -Verbesserung: | 1.0-6.0 | Highlight: | IP-LXM10Z-5 CEDI LX-Z, High Purity Water CEDI LX-Z, Ionpure CEDI LX-Z IP-LXM10Z-5 |
Produkt-Beschreibung
The Ionpure CEDI LX-Z IP-LXM10Z-5 is a cutting-edge electrodeionization (EDI) module engineered by SUEZ Water Technologies & Solutions, designed to deliver reliable, continuous high-purity water for diverse industrial needs. As a flagship model in the LX-Z Series, this module integrates ion exchange resins, ion-selective membranes, and direct current (DC) technology to remove ions and weakly ionized species from feed water—typically reverse osmosis (RO) permeate—eliminating the need for hazardous chemical regenerants.
Crafted for efficiency, the Ionpure CEDI LX-Z IP-LXM10Z-5 boasts a flexible flow range: minimum flow rate of 0.57 m³/hr (2.5 gpm) and design flow rate of 1.1-1.65 m³/hr (5.0-7.5 gpm), with a water recovery rate of 90–95%. It operates at 0-400V DC and 1.0-6.0 DC amperage, weighing 78 kg (171 lbs) dry and 51 kg (113 lbs) in operation. The module ensures exceptional water quality: product resistivity exceeds 17 MW-cm at minimum flow and 7 MW-cm at maximum flow, with 90-99% silica (SiO₂) removal (depending on feed conditions). All water-contacting components meet NSF®/ANSI 14 and 61 standards, and it holds CE certification, manufactured under ISO 9001 and ISO 14000 systems.
Key Specifications of Ionpure CEDI LX-Z IP-LXM10Z-5
|
Attribute |
Value |
|
Minimum Flow Rate |
0.57 m³/hr (2.5 gpm) |
|
Design Flow Rate |
1.1-1.65 m³/hr (5.0-7.5 gpm) |
|
Recovery Rate |
90–95% |
|
DC Voltage |
0-400V |
|
DC Amperage |
1.0-6.0 |
|
Dry Weight |
78 kg (171 lbs) |
|
Operating Weight |
51 kg (113 lbs) |
|
Max Feed Conductivity |
<40 μS/cm |
|
Max Total Chlorine |
<0.05 ppm |
The Ionpure CEDI LX-Z IP-LXM10Z-5 offers unmatched advantages: chemical-free operation cuts costs and environmental impact, 24/7 continuous performance eliminates batch variability, and a robust double O-ring seal ensures leak-free reliability. It simplifies maintenance by removing chemical handling and DI tank replacements, while tolerating feedwater with up to 0.05 ppm total chlorine. Ideal for industries like semiconductor, pharmaceutical, power, and solar energy, it supports applications such as ultrapure water production, boiler feed water, and USP purified water—making the Ionpure CEDI LX-Z IP-LXM10Z-5 the go-to choice for high-purity water needs.
