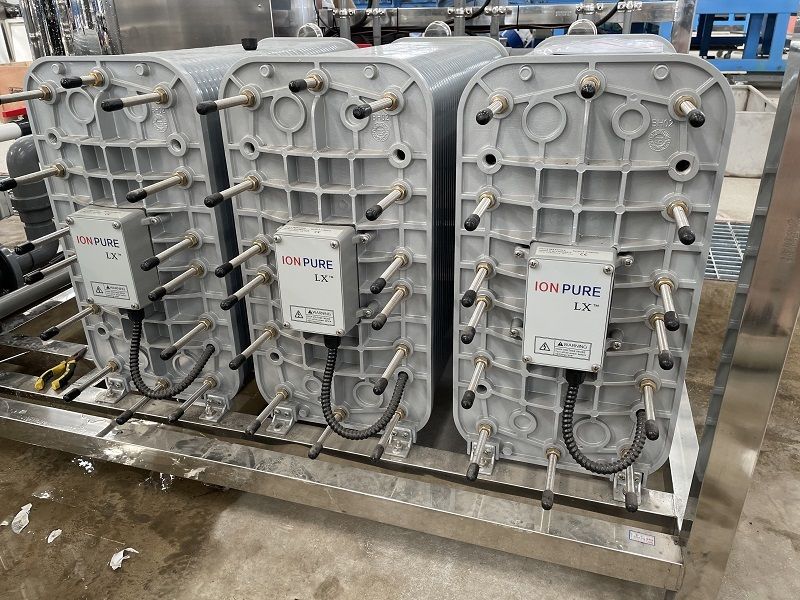

Ionpure LX-Z IP-LXM30Z-5 CEDI Module for High-Purity, Chemical-Free Water
Produktdetails:
| Herkunftsort: | China |
| Markenname: | IONPURE |
| Zertifizierung: | CE |
| Modellnummer: | IP-LXM30Z-5 |
| Dokument: | fgwater-ionpure-lxz-ds.pdf |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 PC |
|---|---|
| Preis: | verhandelbar |
| Verpackung Informationen: | Standard-Exportverpackung |
| Lieferzeit: | 5- 8 Arbeitstage |
| Versorgungsmaterial-Fähigkeit: | 60000 Einheiten pro Monat |
|
Detailinformationen |
|||
| Minimale Durchflussrate des Geräts m3/h (gpm): | 1,70 (7,5) | Gerätedesign Durchflussrate m3/h (gpm): | 3.3-5.11 (15.0-22.5) |
|---|---|---|---|
| Versandgewicht des Geräts kg (lbs)**: | 132 (291) | Betriebsgewicht des Geräts kg (lbs): | 110 (243) |
| Gerätewiederherstellung: | 90–95% | Vorteile: | Hochreines Wasser |
| Temperatur: | 5–45 ° C (41–113 ° F) | Einlassdruck: | 1,4–6,9 bar (20–100 psig) |
| Anwendung: | Industrielle Nutzung | ||
Produkt-Beschreibung
The Ionpure IP-LXM30Z-5 CEDI module provides continuous, chemical-free production of high-purity water (up to 18 MΩ·cm) for critical industrial applications. Designed for pharmaceutical, microelectronics, and power generation industries, this system eliminates chemical regeneration while delivering consistent water quality with minimal wastewater discharge. Featuring robust construction and easy integration capabilities, it offers reliable performance with significantly reduced operational costs compared to traditional ion exchange systems. The compact design simplifies installation in both new and existing water treatment setups.
| IP-LXM30Z-5 Minimum Flow Rate m3/hr (gpm) | 1.70 (7.5) |
| IP-LXM30Z-5 Design Flow Rate m3/hr (gpm) | 3.3-5.11 (15.0-22.5) |
| IP-LXM30Z-5 Shipping Weight kg (lbs) | 132 (291) |
| IP-LXM30Z-5 Operating Weight kg (lbs) | 110 (243) |
| IP-LXM30Z-5 Recovery | 90–95% |
| IP-LXM30Z-5 Advantages | Greater Stability |
| Stack Temperature | 5–45˚C (41–113˚F) |
| Stack Inlet Pressure | 1.4–6.9 bar (20–100 psig) |
| Application | The Production Of Pure Water |
The Ionpure LX-Z IP-LXM30Z-5 is a compact and efficient Continuous Electrodeionization (CEDI) module, engineered to produce high-purity water consistently. It seamlessly integrates into reverse osmosis (RO) systems, providing a chemical-free polishing step to remove dissolved ions.
This module is ideal for a wide range of applications, including laboratory water systems, pharmaceutical manufacturing, and industrial process water. Its reliable, continuous operation eliminates the need for hazardous acid and caustic regenerants, reducing operational costs and environmental impact. The IP-LXM30Z-5 delivers superior water quality with low maintenance, ensuring a reliable and sustainable source of pure water.
- Chemical-Free Operation
- Zero Chemical Regeneration: Utilizes electrical current to continuously regenerate ion-exchange resins, removing dissolved ions without acids, alkalis, or neutralization systems.
- Stable Output Quality: Produces water with resistivity >16 MΩ*cm, ensuring compliance with international purity standards.
- Robust Industrial Design
- Durability: Constructed with corrosion-resistant materials, supporting continuous operation at pressures up to 7 bar (100 psi) and temperatures up to 45°C.
- Leak-Proof Integrity: Dual O-ring seals and rigid structural frame prevent leaks during high-pressure operation.
- Efficiency & Scalability
- Optimized Energy Use: Adaptive DC power supply dynamically adjusts to feedwater conductivity and flow rates.
- Modular Deployment: Designed for seamless integration into systems requiring 3.3 -5.1 m³/h of high-purity water.
CE mark certification, each module is strictly tested before leaving the factory to meet the high standards of the industry and is manufactured under ISO 9001 and ISO 14000 quality and environmental management system standards.
The module should be installed indoors, away from direct sunlight, with ambient temperature not exceeding 113°F (45°C) to ensure stable and efficient operation.
| Operating Parameters | |
|---|---|
| Recovery | 90-95% |
| DC Voltage | 0-400 |
| DC Amperage | 1.0-6.0 |
| Product Water Quality | |
| Product Resistivity | Minimum Flow > 17 MW-cm*† Maximum Flow > 7 MW-cm*† |
| Silica (SiO2) Removal | 90-99%, depending on feed conditions |
| Feed Water Conductivity Equivalent, including CO2 and Silica | < 40 μS/cm |
| Feed Water Source | RO permeate |
| Temperature | 5-45˚C (41-113˚F) |
| Inlet Pressure | 1.4-6.9 bar (20-100 psig) |
| Maximum Total Chlorine (as Cl2) | < 0.05 ppm |
| Iron (as Fe) | < 0.01 ppm |
| Manganese (as Mn) | < 0.01 ppm |
| Sulfide (S2-) | < 0.01 ppm |
| pH | 4-11 |
| Total Hardness (as CaCO3) | < 1.0 ppm |
| Dissolved Organics (TOC as C) | < 0.5 ppm |
| Silica (SiO2) | < 1.0 ppm |
| Item Number | L +/- 6.4 mm (0.25") | C +/- 3.2 mm (0.13") |
|---|---|---|
| LXM04Z | 257 mm (10.12") | 146.8 mm (5.78") |
| LXM10Z | 347.7 mm (13.69") | 235.7 mm (9.28") |
| LXM18Z | 488.2 mm (19.22") | 353.8 mm (13.93") |
| LXM24Z | 601.7 mm (23.69") | 442.7 mm (17.43") |
| LXM30Z | 696.5 mm (27.42") | 531.3 mm (20.92") |
| LXM45Z | 907.3 mm (35.72") | 747.7 mm (29.44") |
| LX8000Z | 1062 mm (41.81") | 888 mm (34.95") |
| Ordering Part # | Model Number | Minimum Flow Rate m3/hr (gpm) | Design Flow Rate m3/hr (gpm) | Shipping Weight kg (lbs) | Operating Weight kg (lbs) |
|---|---|---|---|---|---|
| W3T17286 | IP-LXM04Z-5 | 0.22 (1.0) | 0.44-0.67 (2.0-3.0) | 59 (130) | 31 (69) |
| W3T17291 | IP-LXM10Z-5 | 0.57 (2.5) | 1.1-1.65 (5.0-7.5) | 78 (171) | 51 (113) |
| W3T17297 | IP-LXM18Z-5 | 1.02 (4.5) | 2.0-3.1 (9.0-13.5) | 99 (217) | 74 (163) |
| W3T17303 | IP-LXM24Z-5 | 1.36 (6.0) | 2.8-4.2 (12.5-18.8) | 115 (254) | 92 (103) |
| W3T17312 | IP-LXM30Z-5 | 1.70 (7.5) | 3.3-5.11 (15.0-22.5) | 132 (291) | 110 (243) |
| W3T17314 | IP-LXM45Z-5 | 2.57 (11.3) | 5.1-7.67 (22.5-33.8) | 205 (451) | 157 (345) |
| W3T584543 | IP-LX8000Z-5 | 3.13 (13.75) | 7.5 - 10 (33 - 44) | 225 (496) | 190 (419) |
E-Cell EDI technology has been successfully applied in various industries such as power, petroleum, chemical, steel, pharmaceutical, and electronics.
