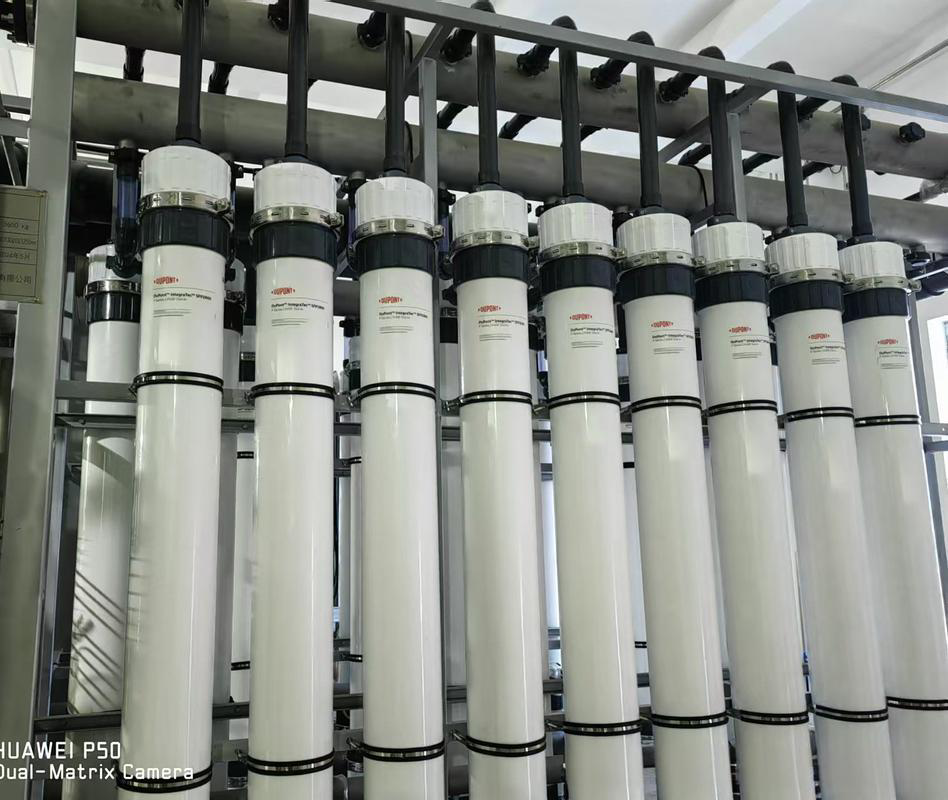

DuPont™ SFP-2880 UF Module – Cost-Effective RO Pretreatment & Water Reuse
Produktdetails:
| Herkunftsort: | China |
| Markenname: | Dupont |
| Zertifizierung: | CE |
| Modellnummer: | SFP-2880 |
| Dokument: | UF-IntegraTec-P-Series-PVDF...en.pdf |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 PC |
|---|---|
| Preis: | verhandelbar |
| Verpackung Informationen: | Standard-Exportverpackung |
| Lieferzeit: | 5- 8 Arbeitstage |
| Zahlungsbedingungen: | , T/t |
| Versorgungsmaterial-Fähigkeit: | 60000 Einheiten pro Monat |
|
Detailinformationen |
|||
| Modulflussbereich der Komponente: | 40 ̊90 LMH (24 ̊53 gfd) bei 25°C | Modulflussrate von SFP-2880: | 2,0–6,9 m³/h (8,8–30,4 gpm) |
|---|---|---|---|
| Modultemperaturgrenzen von SFP-2880: | 1°C bis 40°C | Modul Max Operating TMP von SFP-2880: | 2,1 bar (30,5 psi) |
| Modul Chemische Toleranz: | Stand bis zu 2.000 mg/l Naocl | Moduloptimiertes Design: | 77m2 |
| Breiter Anwendungsbereich von SFP-2880: | Geeignet für die Aufbereitung von Oberflächenwasser, Meerwasser, kommunaler Trinkwasserproduktion | Membrantyp: | Industrielle Ultrafiltrationsmembrankomponenten |
Produkt-Beschreibung
DuPont™ SFP-2880 UF Module – Cost-Effective RO Pretreatment & Water Reuse
Product Overview
Protect your reverse osmosis system and reduce operational expenses with the DuPont™ SFP-2880. This robust UF module serves as a critical barrier, efficiently removing contaminants that cause RO fouling. By ensuring superior feed water quality, it extends RO membrane lifespan, minimizes chemical cleaning, and lowers the total cost of ownership for your water treatment plant.
Key Features
- Advanced Filtration Performance: Removes bacteria, viruses, and colloids with high efficiency; achieves filtrate turbidity below 0.1 NTU and SDI under 2.5; ideal protection for reverse osmosis systems
- Engineered Durability: Chemical-resistant PVDF membrane withstands extreme pH conditions; U-PVC housing eliminates need for pressure vessels; operating temperature range supports global deployments
- High-Efficiency Design: Industry-leading membrane area enables high flow rates; outside-in flow handles high solids loading; reduced backwash frequency lowers water consumption
- Operational Reliability: Consistent performance in municipal and industrial settings; minimal maintenance requirements; compatible with automated control systems
Technical Specifications
| Attribute | Value |
|---|---|
| UF Module Flux Range | 40–90 LMH (24–53 gfd) at 25°C |
| Flow Rate per Module | 2.0–6.9 m³/hr (8.8–30.4 gpm) |
| UF Module Temperature Limits | 1–40°C (34–104°F) |
| UF Module Max Operating TMP | 2.1 bar (30.5 psi) |
| Chemical Tolerance | Withstands up to 2,000 mg/L NaOCl |
| Membrane Area | 77m² |
| Membrane Type | Industrial Grade Ultrafiltration Membrane Components |
Product Specifications
| Model | Type | Part # | Membrane Area (m²/ft²) | Volume (Liters/Gallons) | Weight (Kg/lbs) |
|---|---|---|---|---|---|
| SFP-2880 | Pretreatment | 280934 | 77 / 829 | 39 / 10.3 | 61 / 135 (empty), 100 / 220 (water filled) |
| SFD-2880 | NSF/ANSI 61 Drinking water | 324169 | 77 / 829 | 39 / 10.3 | 61 / 135 (empty), 100 / 220 (water filled) |
Operating Parameters
| Parameter | SI Units | US Units |
|---|---|---|
| Filtrate Flux @ 25ºC | 40-120 l/m²/hr | 24-70 gfd |
| Flow range | 3.1-9.3 m³/hr | 13.6 - 40.9 gpm |
| Temperature | 1-40ºC | 34-104ºF |
| Max. inlet module pressure (@ 20ºC) | 6.25 bar | 93.75 psi |
| Max. operating TMP | 2.1 bar | 30 psi |
| Max operating air scour flow | 12 nm³/hr | 7.1 scfm |
| Max backwash pressure | 2.5 bar | 36 psi |
| Operating pH | 2-11 | |
Important: If operating limits and guidelines given in this bulletin are not strictly followed, the limited warranty will be null and void. To prevent biological growth during system shutdowns, it is recommended that preservative solution be injected into the membrane modules.
Module Installation
For application cases, please visit: www.fgwater.com/Industries/
