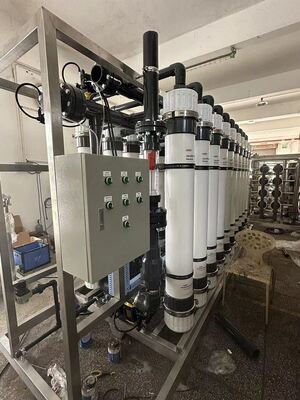

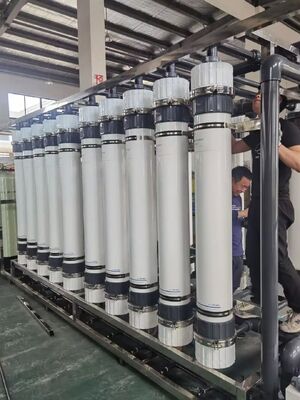

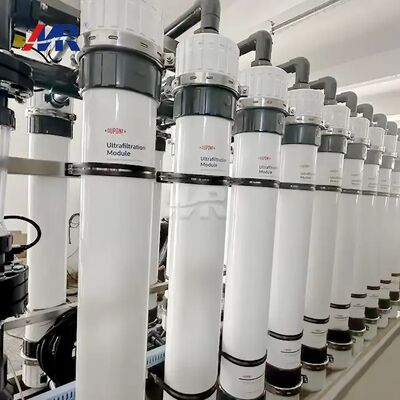

XP 77 IG (Open Platform PVDF Ultrafiltration Module) This model belongs to DuPont's open platform pressure ultrafiltration membrane series and is one of the most widely used models in industrial and seawater desalination pretreatment.

1. Membrane material is PVDF (polyvinylidene fluoride), with a nominal pore size of approximately 0.03 μm.

2. Effective membrane area per module is approximately 77 m².

3. Standard module outer diameter is approximately 225 mm (8.9 inch), and length is approximately 2360 mm (93 inch).

4. Typical operating flux range is 40–110 LMH (at 25°C).

5. Maximum chlorine resistance is approximately 1,500,000 ppm·h.

6. Designed for outside-in operation, supporting cross-flow or dead-end filtration.

7. Primarily used in industrial RO pretreatment, seawater desalination pretreatment, and high-pollution water source and industrial wastewater reuse systems.

The core advantages of this model lie in its high antifouling capability and chemical cleaning resistance, making it suitable for high-temperature, high-salinity, and complex water quality conditions. It is the mainstream choice for projects in the Middle East and industrial applications.

• Outstanding Hydrophilicity: The utilization of a hydrophilic formulation in the IntegraTec™ PVDF inner and outer pressurized systems enhances their resistance to fouling. This property helps maintain consistent filtration performance over extended periods, reducing downtime for cleaning and maintenance.

• Enhanced Chemical Resistance: IntegraTec™ PVDF systems exhibit high resistance to oxidation, making them suitable for demanding applications where exposure to harsh chemicals is common. This resistance contributes to the longevity of the system and reduces the need for frequent replacements, resulting in cost savings over the system's operational life.

• Optimized Water Recovery: These systems achieve high recovery rates by minimizing the requirement for backwashing water. This not only conserves water resources but also contributes to cost savings by reducing the volume of water needed for system operation, ultimately improving the overall efficiency of the water treatment process.

• Diverse Fiber Design Options: The IntegraTec™ PVDF systems offer a range of fiber design options, allowing for customization based on specific water treatment requirements. Different fiber designs enable adaptability to varying feed water qualities and operating conditions, enhancing the system's flexibility and performance across different applications.

• Long-Term Reliability: With its robust construction and high-quality materials, the IntegraTec™ PVDF systems are designed for long-term reliability and durability. This ensures consistent and efficient operation over the system's lifespan, providing a dependable water treatment solution for various industrial and commercial settings.

Product Specifications

Figure 1: XP77 IG and XP77 (8-inch diameter)

Operating Parameters

For application cases, please click:https://www.fgwater.com/Industries/
