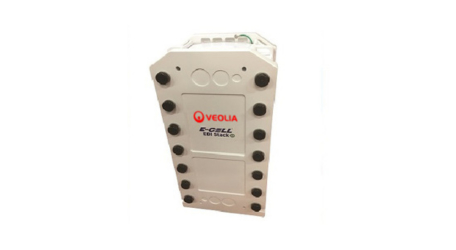

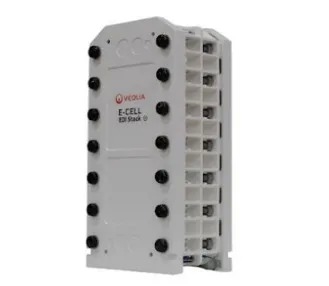

Veolia MK-3MiniHT EDI Stack for Pharmaceutical Water USP EP Compliance
Produktdetails:
| Place of Origin: | China |
| Markenname: | VEOLIA |
| Zertifizierung: | CE |
| Model Number: | Veolia EDI MK-3MiniHT |
| Dokument: | FSpwE-CellMK-3MiniHT_EN.pdf |
Zahlung und Versand AGB:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Preis: | verhandelbar |

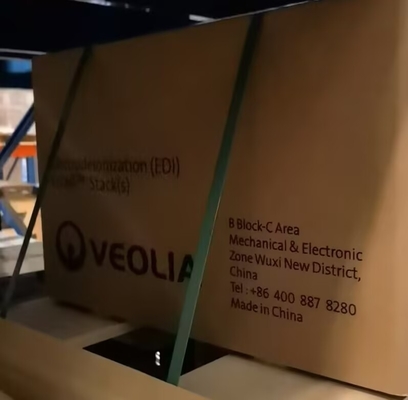

| Packaging Details: | standard export packing |
| Supply Ability: | 60000 Units per Month |
|
Detailinformationen |
|||
| MK-3MiniHT Flow Rate Range: | 0.5–1.6 m3 /h (2.2–7.0 gpm) | MK-3MiniHT Product Shipping Weight: | 57 kg (126 lbs) |
|---|---|---|---|
| MK-3MiniHT Dimensions of this model (width x height x depth): | 30 cm x 61 cm x 29 cm | MK-3MiniHT Resistivity: | ≥ 10 (Pharmaceutical) or ≥ 16 MOhm-cm (Industrial |
| Product Sodium: | ≤ 3 ppb (industrial) | Product Maximum Sanitization Temperature: | 85ºC (185ºF) |
| Product Maximum Sanitization Inlet Pressure: | 2.1 bar (30 psi) | Product Application: | Pharmaceutical and laboratory purified water compliant with USP and EP |
| Hervorheben: | Veolia MK-3MiniHT EDI stack,EDI stack for pharmaceutical water,USP EP compliant EDI stack |
||
Produkt-Beschreibung
Compliant with USP and EP standards for pharmaceutical and laboratory purified water applications.
| Flow Rate Range | 0.5–1.6 m³/h (2.2–7.0 gpm) |
| Shipping Weight | 57 kg (126 lbs) |
| Dimensions | 30 cm x 61 cm x 29 cm |
| Resistivity | ≥ 10 MOhm-cm (Pharmaceutical) or ≥ 16 MOhm-cm (Industrial) |
| Maximum Sanitization Temperature | 85ºC (185ºF) |
- Patented HT-EDI™ technology for reagent-grade water production
- 90% lower energy consumption compared to mixed-bed systems
- Maintenance-free operation with intelligent control system
- Real-time monitoring of conductivity, pH, and pressure drop
- Patented staggered flow channel design prevents scaling
Maintains resistivity above 18.2 MΩ*cm with 22% energy reduction compared to traditional EDI equipment. Achieves recovery rates exceeding 90% even with high-hardness raw water.
- Basic Unit - Standalone purification
- RO-EDI Integrated - Complete purification skid
- GMP Version - With full validation support
- CE, RoHS, CSA and EAC marked
- FDA-compliant materials
- UKCA certified
- Manufactured in ISO 9001 and ISO 14001 facility
- Halal certified by IFANCA®
| Parameter | Value |
|---|---|
| Inlet Pressure | 6.9 bar (100 psi) |
| Max Temperature | 40°C (104°F) |
| Pressure Drop | 1.4-2.8 bar (20-40 psi) |
| Recovery Rate | Up to 93% |
| Conductivity | <117 µS/cm |
| pH Range | 4-11 |
Ideal for water for injection, pharmaceutical purified water, and laboratory purified water systems. Complies with USP, EP, and other pharmacopeia standards.
