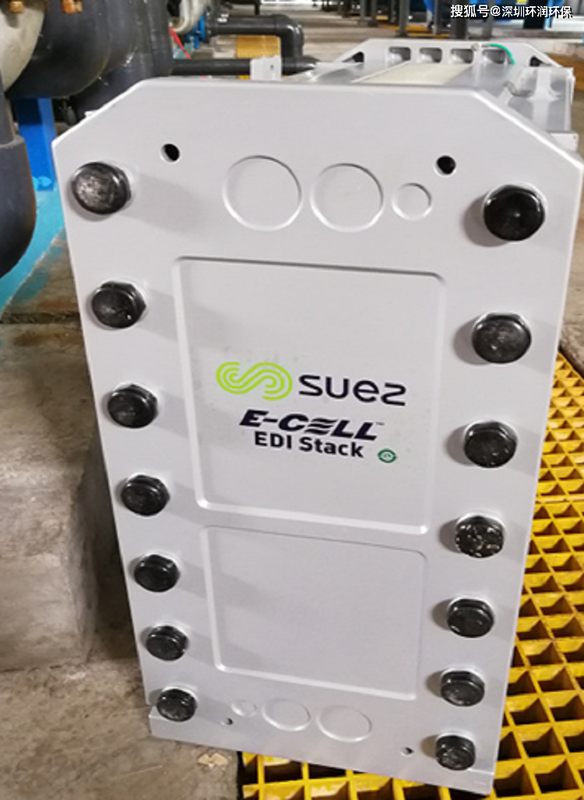

Veolia E-Cell MK-9 EDI Stack (formerly MK-7) For Large-Scale Industrial Ultrapure Water Production
Produktdetails:
| Herkunftsort: | China |
| Markenname: | VEOLIA |
| Zertifizierung: | CE |
| Modellnummer: | MK-9 (ehemals MK-7) |
| Dokument: | Veolia EDI catalog.pdf |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 PC |
|---|---|
| Preis: | verhandelbar |
| Verpackung Informationen: | Standard-Exportverpackung |
| Lieferzeit: | 5- 8 Arbeitstage |
| Zahlungsbedingungen: | , T/t |
| Versorgungsmaterial-Fähigkeit: | 60000 Einheiten pro Monat |
|
Detailinformationen |
|||
| Name: | MK-9 | MK-9-Stapelabmessungen (cm als Breite x Höhe x Tiefe): | 30 x 61 x 74 |
|---|---|---|---|
| Gesamtzahl der austauschbaren Anionen (ppm als CaCO3) des MK-9-Stacks: | <13 | Leitfähigkeit (μS/cm) des MK-9-Stacks: | <22 |
| pH-Wert des MK-9-Stacks: | 4-11 | Temperatur (°C) des MK-9-Stapels: | 4.4-40 |
| Härte (ppm als Caco3): | <1,0 | Kieselsäure (ppm als SiO2): | <1,0 |
| Typisch gestaltete Wasserproduktion (M3 /HR): | 6.0-10.0 | Erholung: | Bis zu 97% |
| Stromspannung: | 0–400 VDC | Typische Neubauanwendungen: | Solarphotovoltaik und grüner Wasserstoff |
Produkt-Beschreibung
The Veolia E-Cell MK-9 EDI Stack (formerly MK-7) represents the high-capacity solution in Veolia's EDI portfolio, delivering 6.0-10.0 m³/hr of continuous ultrapure water for demanding industrial applications. With its enhanced flow capacity and proven reliability, this stack is specifically engineered for large-scale operations where consistent high-purity water production is critical.
Featuring the same advanced electrodeionization technology as other E-Cell models, the MK-9 eliminates chemical regeneration while maintaining superior product water quality (>16 MOhm-cm resistivity). Its robust construction and optimized hydraulic design ensure stable performance in challenging operating conditions across power generation, semiconductor manufacturing, and large-scale industrial water treatment plants.
Key Advantages:
-
High-flow capacity: 6.0-10.0 m³/hr production range
-
Proven reliability in large-scale industrial applications
-
Zero chemical consumption for regeneration
-
Consistent high-purity output (>16 MOhm-cm)
-
Direct upgrade path for existing MK-7 installations
Applications:
-
Semiconductor and microelectronics manufacturing
-
Power plant boiler feed water systems
-
Large-scale pharmaceutical water systems
-
Solar panel production and green hydrogen applications
Choose the MK-9 for your high-volume ultrapure water needs and benefit from Veolia's industry-leading EDI technology with enhanced capacity and reliability. Contact us for detailed technical specifications and project support.
| Attribute | Value |
|---|---|
| Stack Name | MK-9 |
| Dimensions (cm) | 30 x 61 x 74 (W x H x D) |
| Total exchangeable anions (ppm as CaCO3) | <13 |
| Conductivity (μS/cm) | <22 |
| pH Range | 4-11 |
| Temperature Range (°C) | 4.4-40 |
| Hardness (ppm as CaCO3) | <1.0 |
| Silica (ppm as SiO2) | <1.0 |
| Typical designed water production (m3/hr) | 6.0-10.0 |
| Recovery Rate | Up to 97% |
| Voltage | 0–400 VDC |
| Typical Applications | Solar Photovoltaics And Green Hydrogen |
| Parameter | Value |
|---|---|
| Brand | Veolia EDI |
| Inlet Pressure | 6.9 bar (100 psi) |
| Max Temperature | 40°C (104°F) |
| Pressure Drop | 2.4-3.4 bar (35-50 psi) |
| Flow Rate | 8.0m3/h |
| Shipping Weight | 165 kg (364 lbs) |
- Continuously produces ultrapure water of mixed bed water quality
- No acid and base regeneration required
- Guaranteed leak-proof design
- Simplified system design with no brine injection or concentrated water circulation
- Power generation (NOx, boiler feed water)
- Electronics manufacturing
- General industrial applications
- Pharmaceutical & Biotech (WFI pre-treatment)
- Microelectronics & Semiconductor Manufacturing
- Laboratory Ultra-Pure Water Systems
