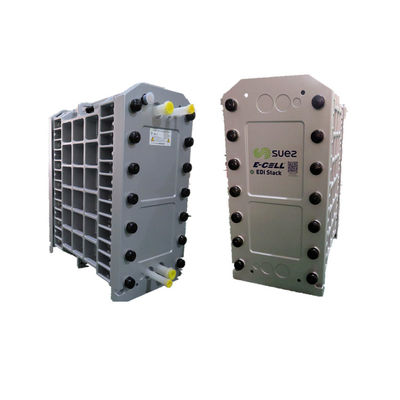

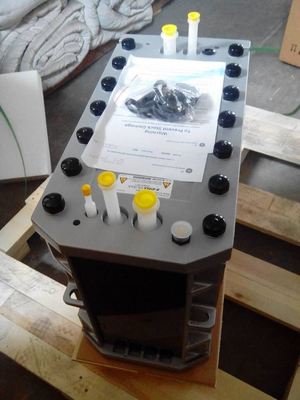

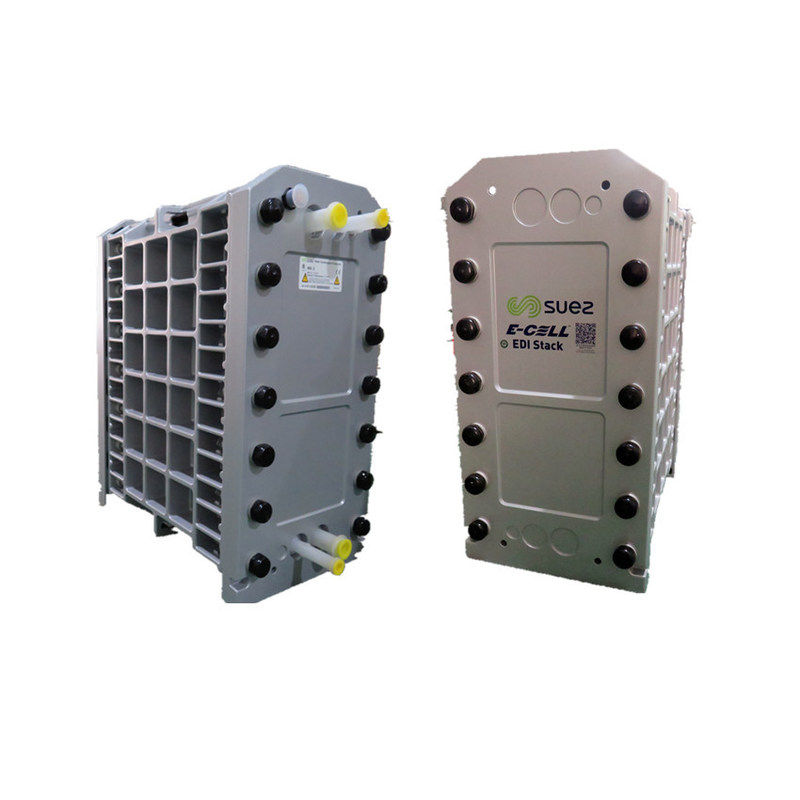

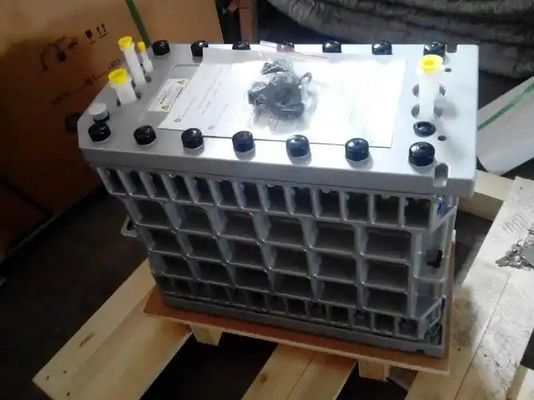

Veolia MK-5 EDI Module with 97% Recovery and 5.0 m3/h Nominal Flow for Ultra-High-Purity Water
Produktdetails:
| Herkunftsort: | CHINA |
| Markenname: | VEOLIA |
| Zertifizierung: | CE |
| Modellnummer: | MK-5 |
| Dokument: | Veolia EDI catalog.pdf |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 PC |
|---|---|
| Preis: | verhandelbar |
| Verpackung Informationen: | Standard -Exportpackung |
| Zahlungsbedingungen: | T/t |
| Versorgungsmaterial-Fähigkeit: | 60000 Einheiten pro Monat |
|
Detailinformationen |
|||
| EDI Mindestdruckdifferenz zwischen Verdünnungsauslass und Konzentrateinlass (bar): | 0,34 | EDI Verdünnter Standarddruckabfall am Einlass/Auslass (bar): | 1.4-2.8 |
|---|---|---|---|
| EDI-Eingangsdruck (bar): | Gegenströmung: 4.1-6,9 Ko-Strom: 3.1-6.9 | EDI-Stromstärke (ADC): | 0-5.2 |
| EDI-Spannung (VDC): | 0-400 | EDI-Wiederherstellung: | Bis zu 97% |
| Entworfene Wasserproduktion (M3 /H) MK-5: | 4.0-6.4 | Nennerfluss: | 5,0 m3/h (22 gpm) |
| Anwendung: | Kesselspeiswasser in Kraftwerken | ||
| Hervorheben: | 97% Recovery EDI Module,5.0 m3/h Nominal Flow Electrodeionization Module,0-400 VDC Voltage Veolia MK-5 |
||
Produkt-Beschreibung
Veolia MK-5 EDI Module - High Efficiency Electrodeionization for Semiconductor and Photovoltaic Industries
The Veolia MK-5 EDI Module (successor to E-CELL-3X) is an advanced electrodeionization solution for industrial water treatment, delivering ultra-high-purity water without chemical regeneration.
Core Technology
Combining electrodialysis and ion exchange technologies, the MK-5 module removes ions through selective membranes under DC current, with continuous resin regeneration from water electrolysis.
Key Advantages
- Produces water with stable resistivity ≥16 MΩ·cm
- Exceptional removal rates: ≥99.9% sodium, 99% silica, 96% boron
- Chemical-free operation eliminates hazardous waste
- Energy-efficient design reduces operating costs
- 3-year prorated warranty for reliable performance
- Modular configuration for flexible capacity scaling
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Flow Rate | 5.0 m³/h (22 gpm) |
| Operating Voltage | 0-400 VDC |
| Operating Current | 0-5.2 ADC |
| Maximum Inlet Pressure | 6.9 bar (100 psi) |
| Recovery Rate | Up to 97% |
| Dimensions | 30 * 61 * 72 cm (12 * 24 * 29 in) |
| Weight | 165 kg (364 lbs) |
Water Quality Performance
| Parameter | Value | Removal Efficiency |
|---|---|---|
| Resistivity | ≥16 MΩ·cm | - |
| Sodium (Na) | ≤3 ppb | ≥99.9% |
| Silica (SiO₂) | ≤5 ppb | Up to 99% |
| Boron (B) | ≤0.08 ppb | Up to 96% |
Industrial Applications
- Semiconductor chip manufacturing and cleaning
- Solar panel production
- High-pressure boiler feedwater
- Green hydrogen electrolysis
- Petrochemical process water
- Pharmaceutical water systems
Figure: EDI module operational schematic
Feed Water Requirements
| Parameter | Maximum Value |
|---|---|
| Total Exchangeable Anions | ≤65 ppm (as CaCO₃) |
| Total Hardness | ≤1.0 ppm (as CaCO₃) |
| Silica (SiO₂) | ≤1.0 ppm |
| Total Organic Carbon | ≤0.5 ppm |
| Temperature Range | 4.4-40°C (40-104°F) |
Quality Certifications
- ISO 9001 & 14001 certified manufacturing
- CE, RoHS, CSA, and EAC compliant
- UKCA certified
- Halal certified by IFANCA®
For detailed performance predictions and system design assistance, please consult Veolia's Winflows® prediction software or contact our technical team.
Note: GE, Suez, and Veolia EDI modules represent the same product technology
